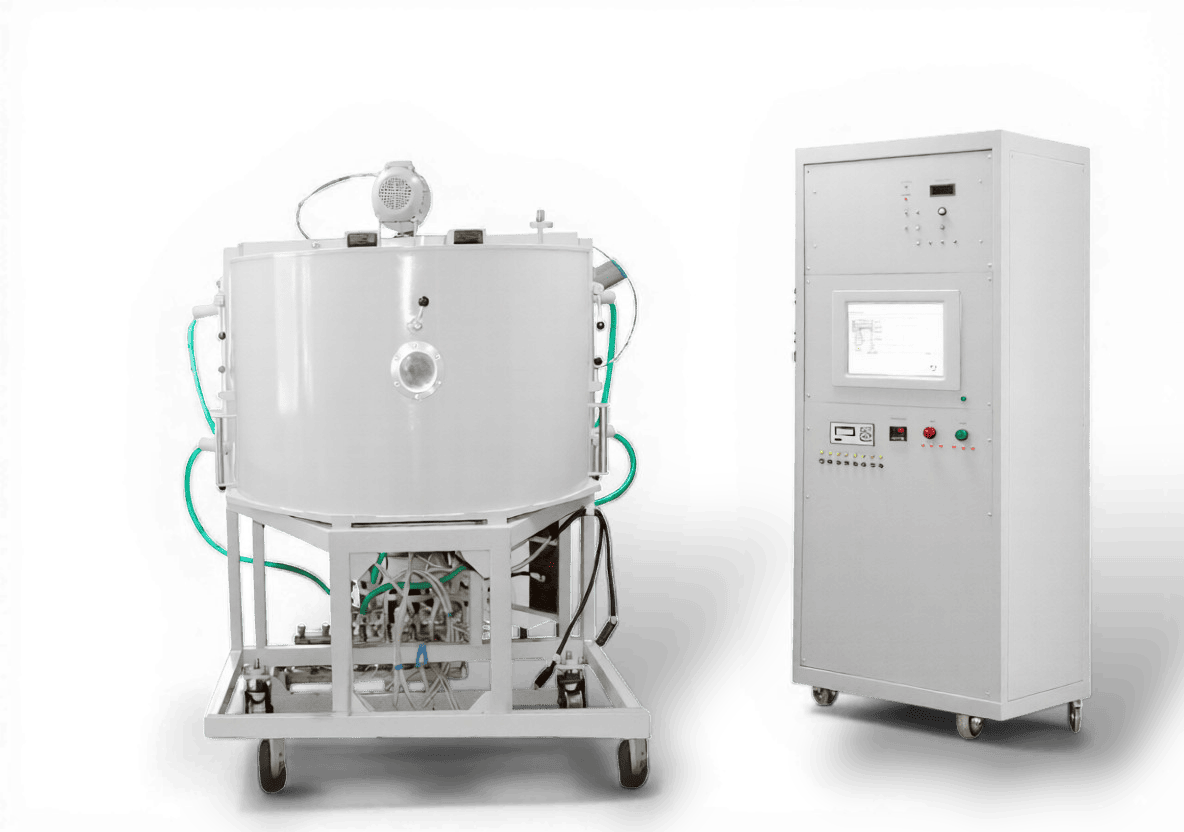

VTT 1200 M2R
The VTT 1200 M2R installation is designed for applying decorative coatings to plastic products with high productivity.
A distinctive feature of the installation is the sliding door system along with the technological equipment, which allows for significantly faster restart of the installation and increased productivity.
Technical specifications.
| 01 | Chamber size, mm | Ø1200х700 | 02 | Fore | Roots pump with a pumping speed of 500 m³/hRotary vane pump with a pumping speed of 226 m³/h |
| 03 | High vacuum pump | Diffusion pump ND 400 | 04 | Vacuum control | INFICON vacuum sensors |
| 05 | Rotational drive | Upper | 06 | Magnetron sputtering source, target, mm | 80x552 x10 |
