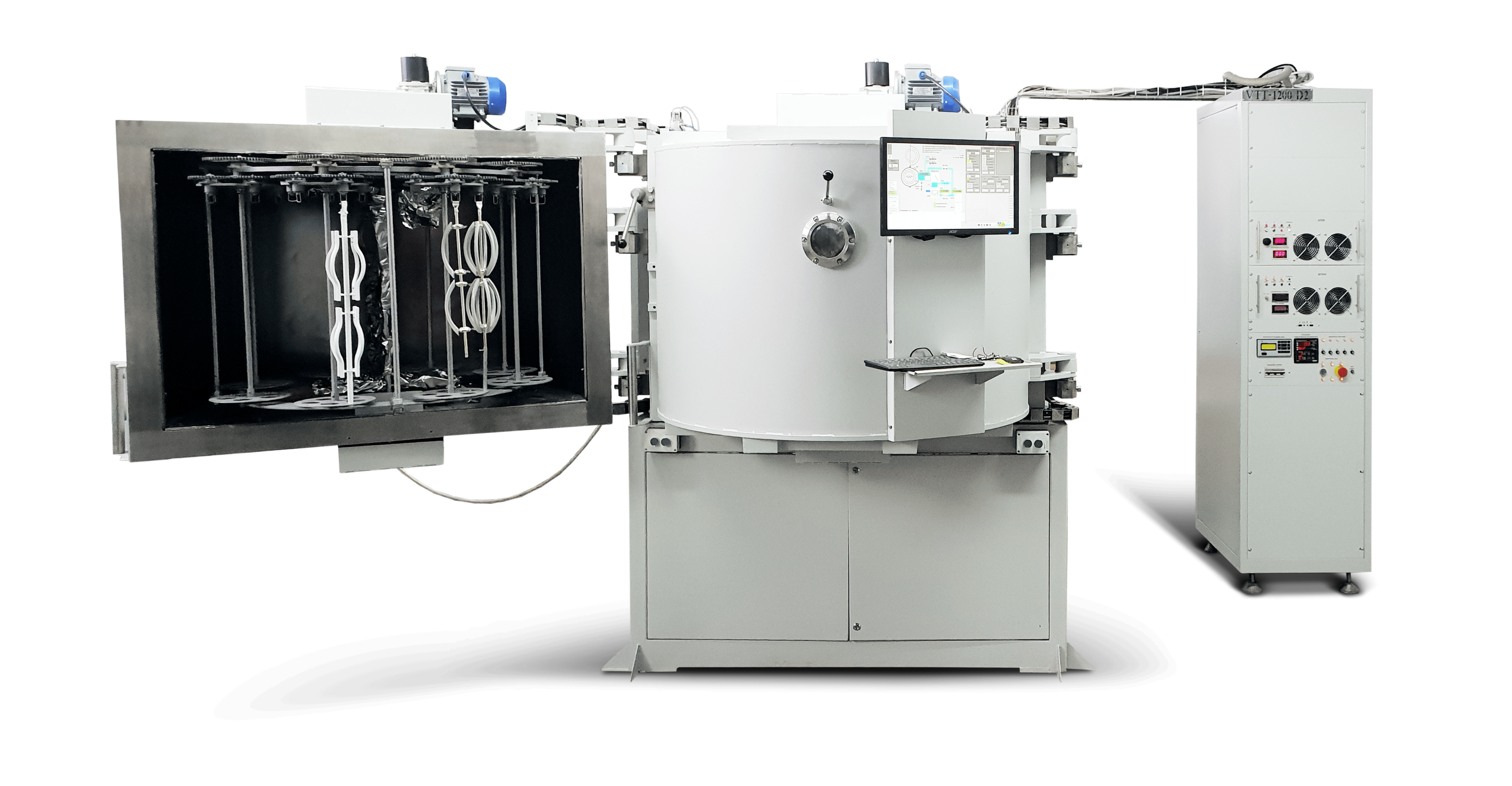

VTT 1200 R2MI
The VTT 1200 R2MI vacuum coating system is designed for high-performance application of decorative coatings on plastic products using magnetron and resistive sputtering.
A distinctive feature of the system is its two doors, each housing process equipment and a resistive evaporator. While products are loaded and unloaded through one door, the spraying process takes place through the second door. This configuration reduces equipment downtime and increases productivity while saving energy.
Technical specifications.
| 01 | Chamber size, mm | Ø1200х800 | 02 | Fore | Roots pump with a pumping speed of 560 m³/h Rotary vane pump with a pumping speed of 300 m³/h |
| 03 | High vacuum pump | Diffusion pump ND 630e | 04 | Vacuum control | INFICON vacuum sensors |
| 05 | Rotational drive | Upper | 06 | Magnetron sputtering source, target, mm | 80x630x10 |
| 07 | Ion cleaning source, ion beam opening, mm | 600 |
