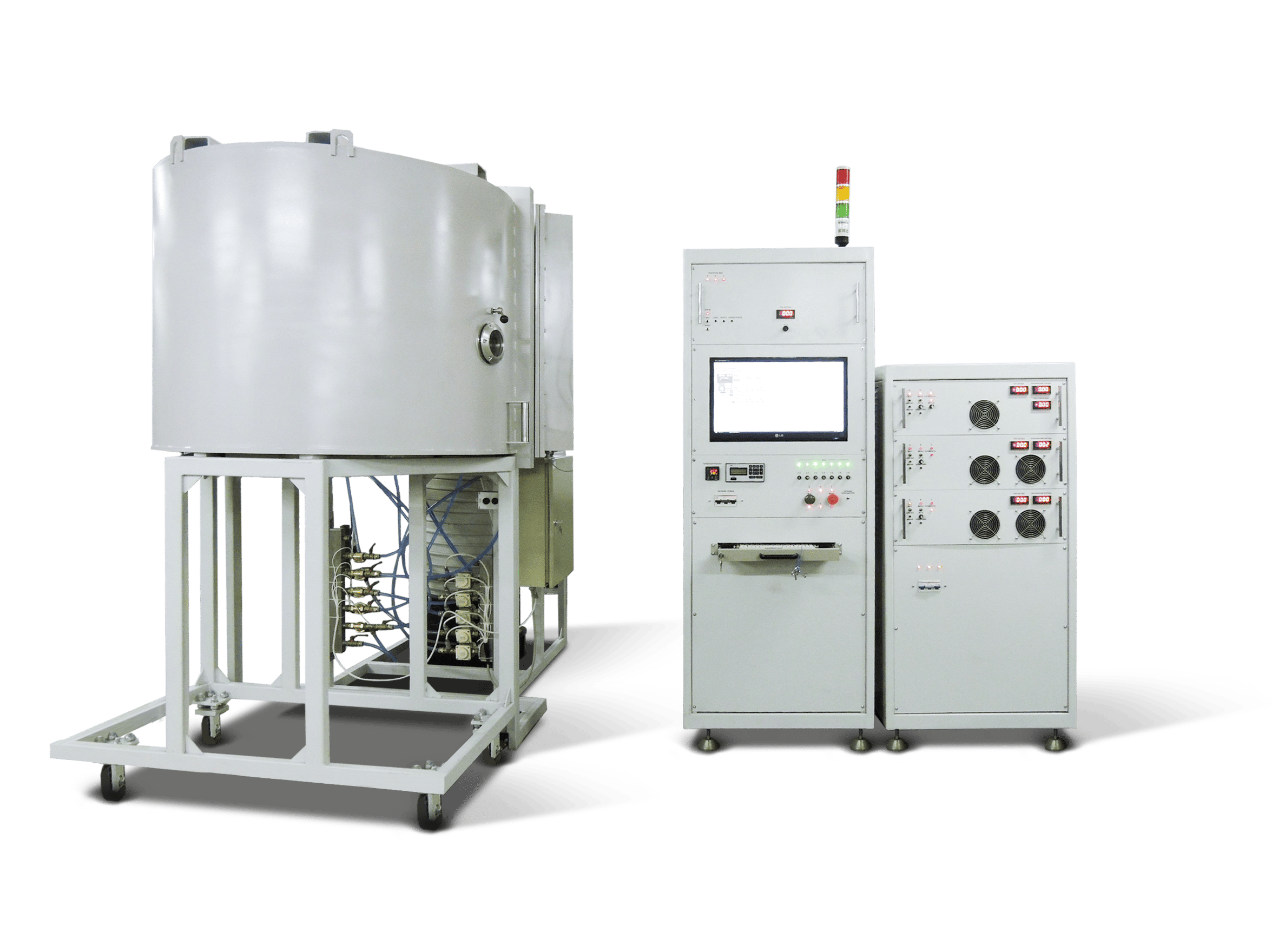

VTT 1300 DIM2
The VTT 1300 DIM2 installation is specially designed for applying decorative coatings to glass products.
The main advantage is high productivity due to fast pumping and specially designed equipment that maximizes chamber loading. The system can apply metallic gold and silver coatings. This type of equipment can also produce other coating colors depending on the materials used for spraying.
Technical specifications.
| 01 | Chamber size, mm | Ø1300х970 | 02 | Fore | Roots pump with a pumping speed of 560 m³/hRotary vane pump with a pumping speed of 300 m³/h |
| 03 | High vacuum pump | Diffusion pump ND 630E | 04 | Vacuum control | INFICON vacuum sensors |
| 05 | Rotational drive | Upper | 06 | Magnetron sputtering source, target, mm | 100x900 x10 |
| 07 | Extended arc evaporation source, cathode, mm | 80x900x25 | 08 | Ion cleaning source, ion beam opening, mm | 800 |
