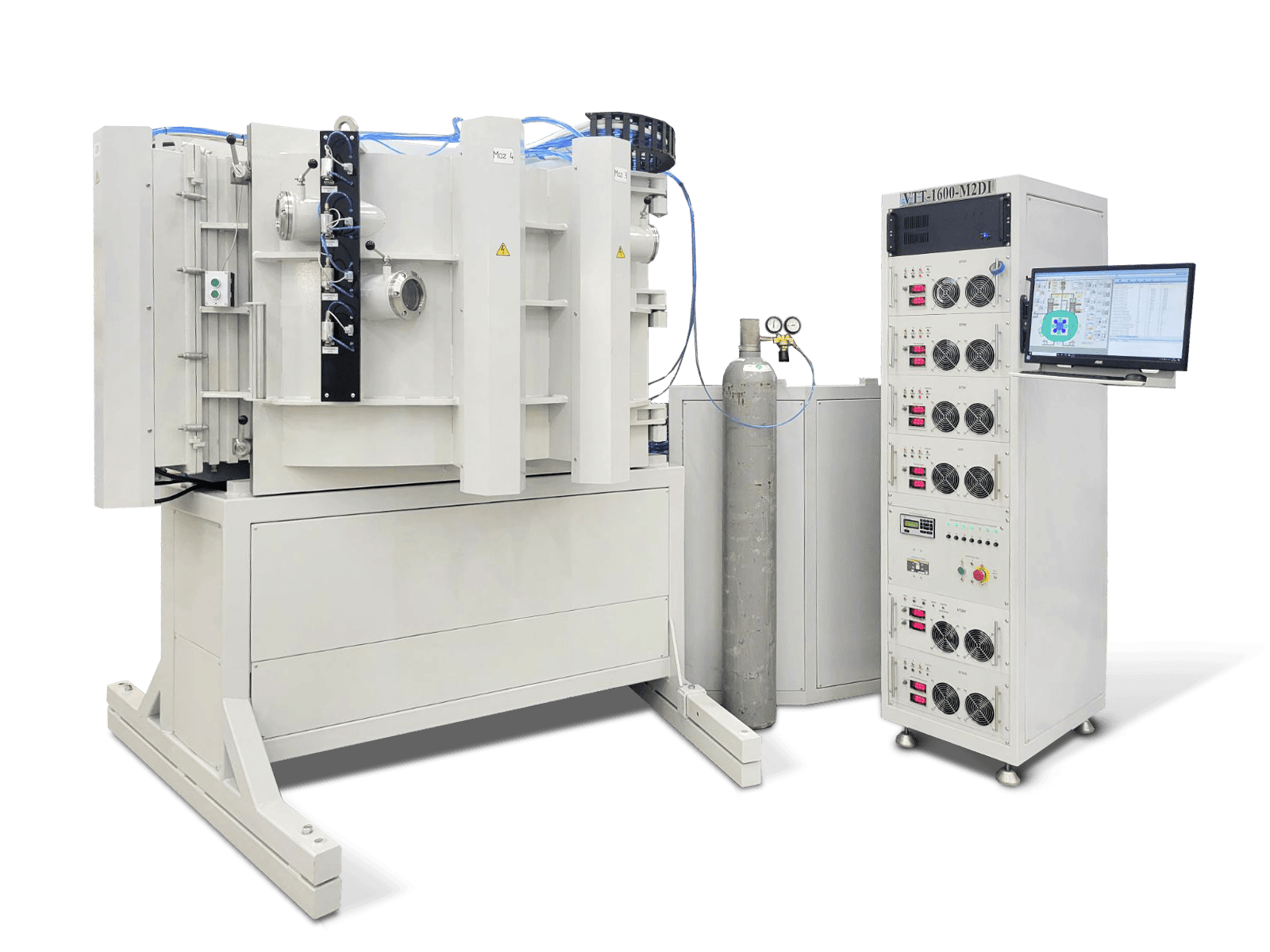

VTT 1600 DIМ2
The VTT 1600 DIM2 installation is specially designed for high-performance application of decorative coatings on glass products.
The installation allows for the application of coatings in gold (gold-like), silver (nickel-like, chrome-like) and other color shades depending on the materials and gases used.
Technical specifications.
| 01 | Chamber size, mm | Ø1600х960 | 02 | Fore | Roots pump with a pumping speed of 1180 m³/h Rotary vane pump with a pumping speed of 400 m³/h |
| 03 | High vacuum pump | Diffusion pump ND 630E | 04 | Vacuum control | INFICON vacuum sensors |
| 05 | Rotational drive | Upper | 06 | Magnetron sputtering source, target, mm | 100x900x10 |
| 07 | Extended arc evaporation source, cathode, mm | 80x900x25 | 08 | Ion cleaning source, ion beam opening, mm | 825 |
