VTT 700×800 DIM2

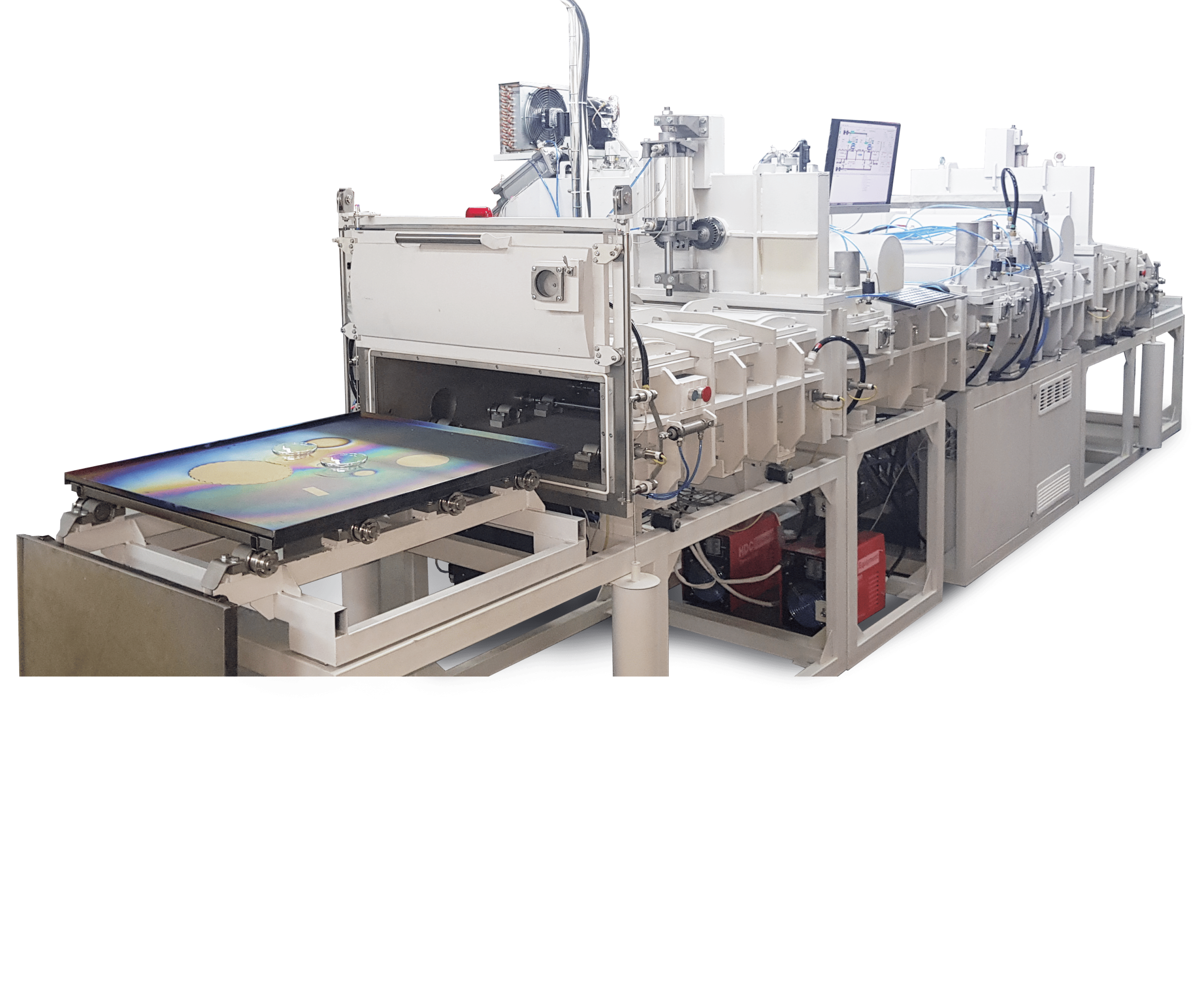

Pass-through VTT 700x800 DIM2 for applying high-quality coatings to products made of metal, glass, ceramics and plastics using magnetron and arc sputtering.
The system enables automated coating application according to a preset program. The pass-through vacuum system allows coating of large, flat items of various configurations without the need for specialized tooling.
Technical specifications.
| 01 | Chamber size, mm | 700x800x150 | 02 | Fore | Roots pump with a pumping speed of 290 m³/hRotary vane pump with a pumping speed of 100 m³/h |
| 03 | High vacuum pump | Diffusion pump ND 400 | 04 | Vacuum control | INFICON vacuum sensors |
| 05 | Rotational drive | Upper | 06 | Magnetron sputtering source, target, mm | 80x840x10 |
| 07 | Extended arc evaporation source, cathode, mm | 80x830x25 | 08 | Ion cleaning source, ion beam opening, mm | 715 |
