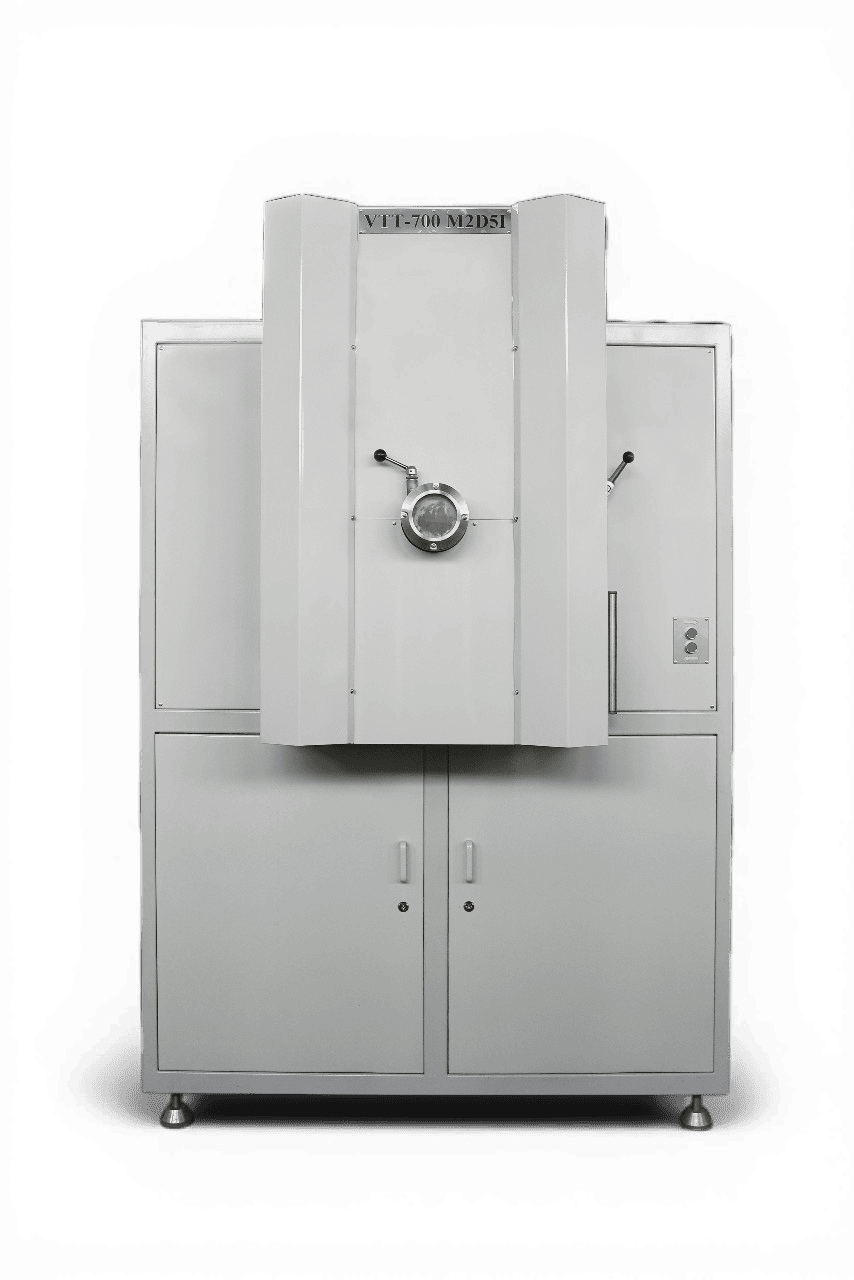

VTT 700 D5IM2
The VTT 700 D5IM2 unit is designed for applying hardening coatings using arc and magnetron methods from electrically conductive materials:
Copper, titanium, chromium, zirconium, molybdenum, aluminum, tungsten, and their gas-fueled compounds. The system is capable of spraying metal, ceramic, glass, and plastic products in manual and automatic modes.
Technical specifications.

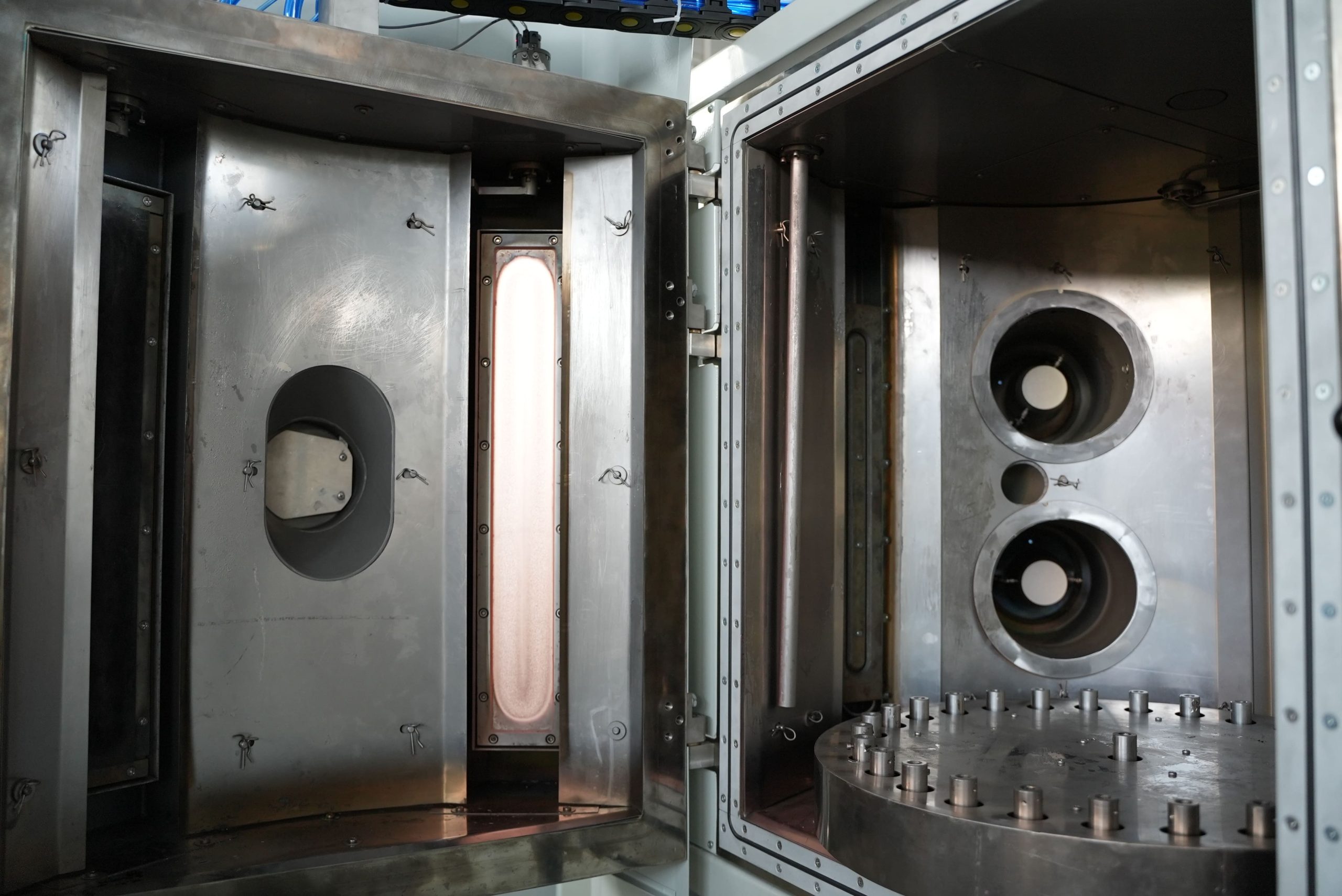

| 01 | Chamber size, mm | Ø800x800 | 02 | Fore | Roots pump with a pumping speed of 540 m³/h Rotary vane pump with a pumping speed of 90 m³/h |

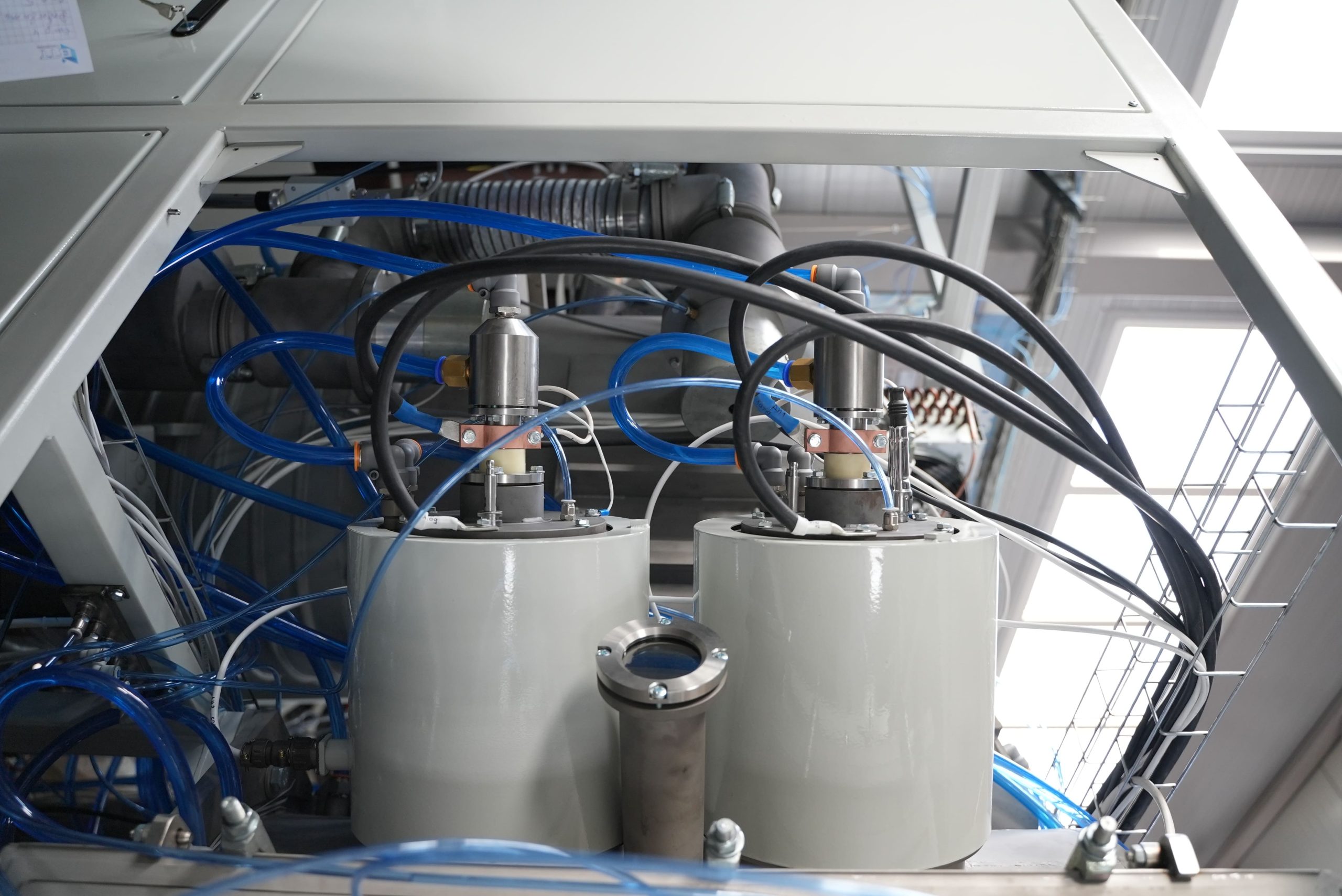

| 03 | High vacuum pump | Diffusion pump ND 500 | 04 | Vacuum control | INFICON vacuum sensors |
| 05 | Rotational drive | Lower | 06 | Magnetron sputtering source, target, mm | 80x604x10 |
| 07 | Point source of arc evaporation, cathode, mm | Ø78х46 | 08 | Extended arc evaporation source, cathode, mm | 80x592x25 |
| 09 | Ion cleaning source, ion beam opening, mm | 465 |
