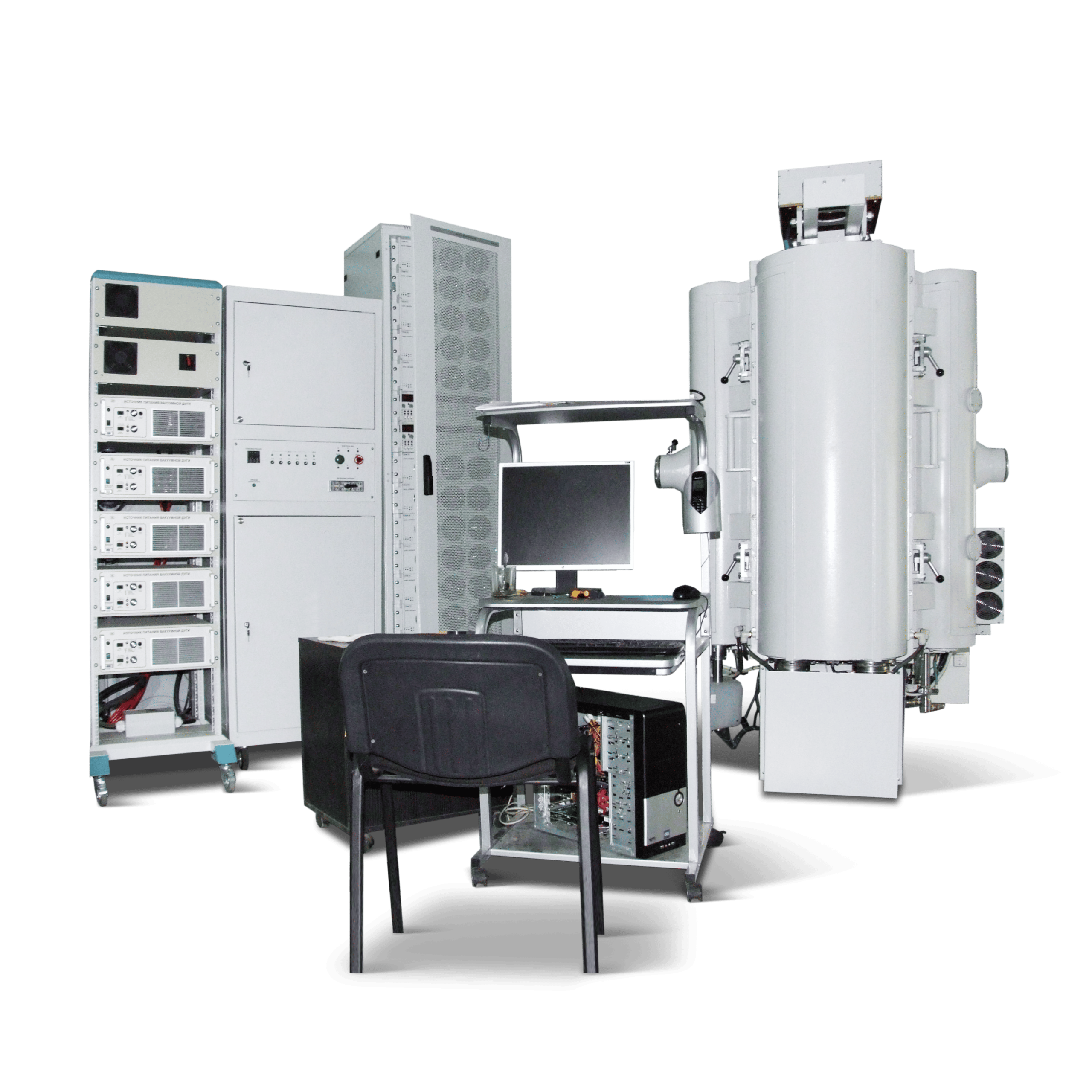

VTT 900 DIM4
The VTT 900 DIM4 is designed for applying hardening coatings to gas turbine blades using magnetron and electric arc sputtering using conductive refractory materials (Ti, Mo, Zr, etc.).
A distinctive feature of this : – the presence of two doors, which significantly speeds up the loading of the sprayed parts and facilitates the cleaning of the chamber and maintenance of the process sources; – the ability to install nine process sources and move them around the chamber.
Technical specifications.
| 01 | Chamber size, mm | Ø900х1400 | 02 | Fore | Roots pump with a pumping speed of 550 m³/h Rotary vane pump with a pumping speed of 90 m³/h |
| 03 | High vacuum pump | Diffusion pump ND 630E | 04 | Vacuum control | INFICON vacuum sensors |
| 05 | Rotational drive | Upper | 06 | Magnetron sputtering source, target, mm | 80x1100 x10 |
| 07 | Extended arc evaporation source, cathode, mm | 80x1100x25 | 08 | Ion cleaning source, ion beam opening, mm | 1000 |
